900mm Thermal Paper Slitting Machine | High-speed Machine
-
Podkreślić
900mm thermal paper slitting machine
,high-speed thermal paper cutter
,industrial thermal paper slitting machine
-
Jakość obrazuWysoki
-
Średnica rolki3 1/8
-
Gram Waga50, 55, 60 g/m2
-
PróbkaBezpłatny
-
baza gsm70/72/75/76 g/m2
-
Średnica rolki300 mm
-
KolorBiały
-
Gramatura45gsm/48gsm/55gsm/60gsm/65gsm...
-
Typrolka papieru bezwęglowego
-
BPABezpłatny
-
Odporność na olejTak
-
Aplikacjabankomat
-
Wykończenie powierzchniGładki
-
Regularna długość6000mm/12000m
-
Obrazobraz czarno-niebieski
-
Miejsce pochodzeniaChiny
-
Nazwa handlowaFOCUS
-
OrzecznictwoSGS, FSC，ISO
-
Numer modeluFM25PSM0412001

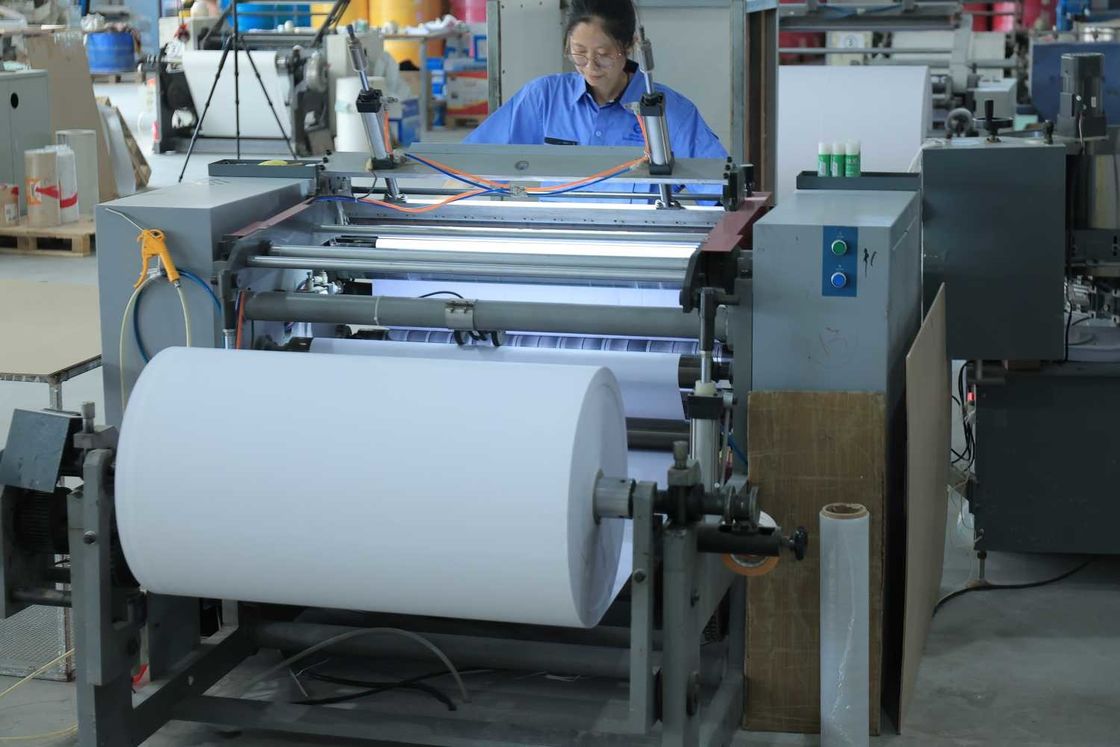

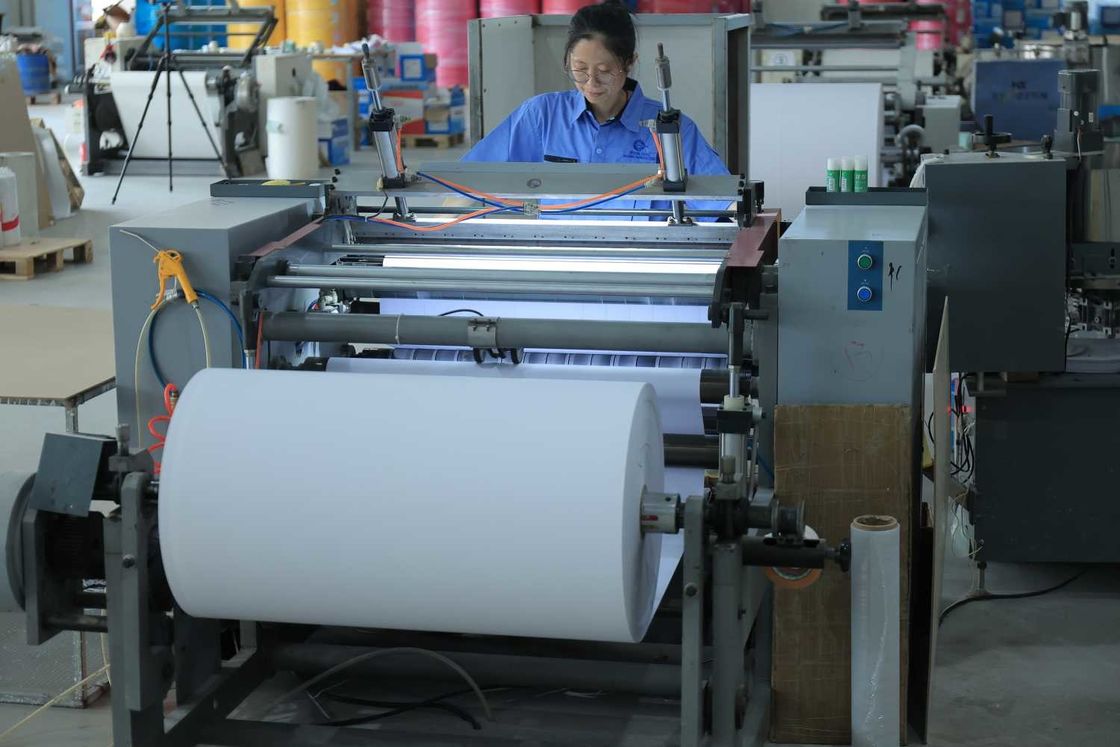

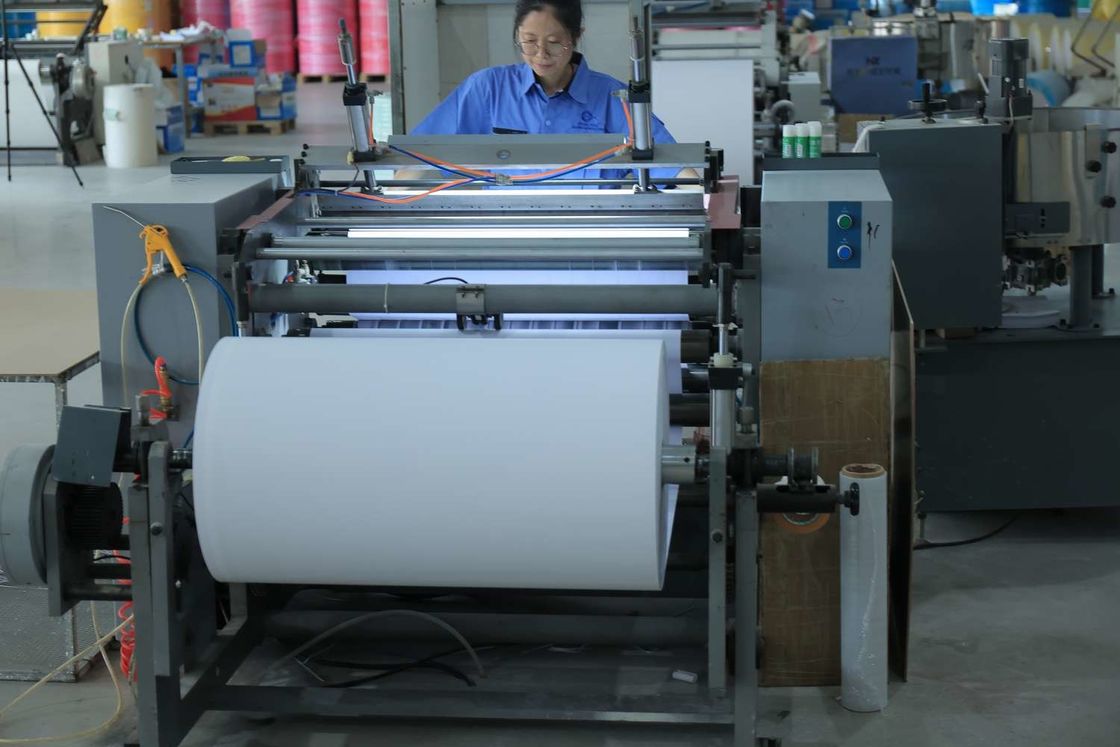

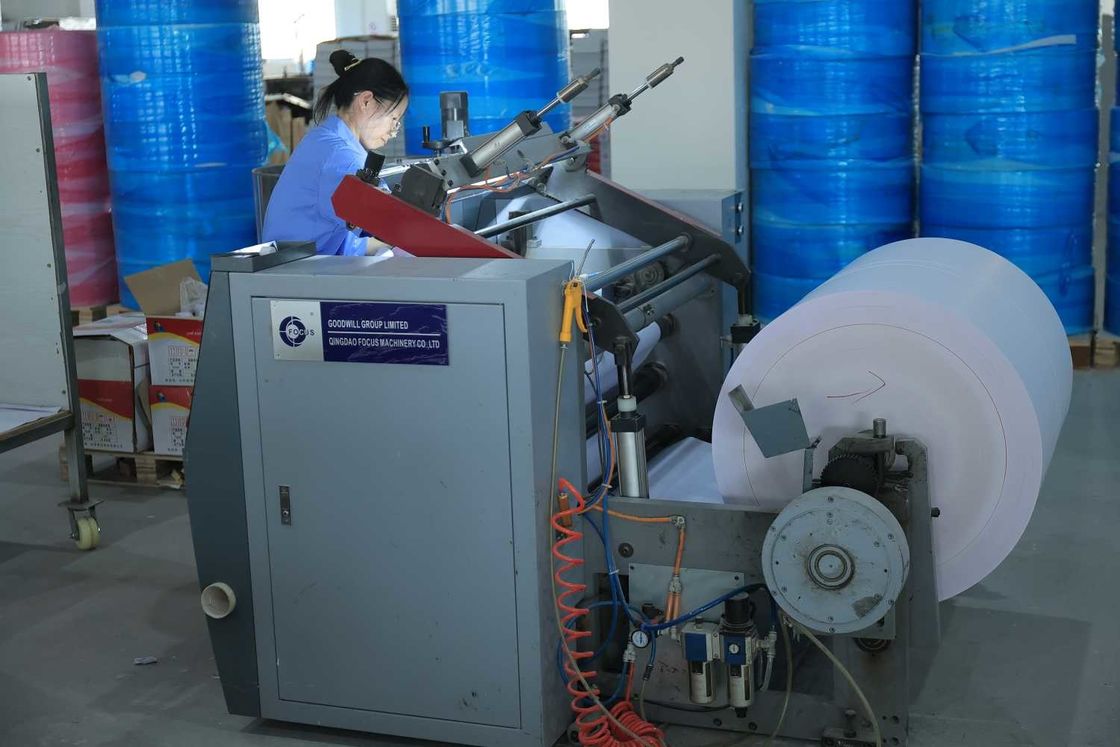

900mm Thermal Paper Slitting Machine | High-speed Machine
Thermal Paper Slitting Machine
High-performance thermal paper slitting machine offering exceptional working speed, cost-efficiency, and durable operating life with maximum web width of 900mm and speed up to 200m/min.
Key Specifications
| Attribute | Value |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 200mm |
| Frequency Inverter Motor | 2.2Kw |
| Thickness Range | 40-400gsm |
| Max. Machine Speed | 200m/min |
| Overall Dimension | 1600*1700*1600mm (1 Ply) |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
| Machine Type | Flexo Letterpress Printing Machine |
| Cutting Accuracy | ±0.1mm |
| Slitting Accuracy | ±0.1mm |
Product Overview
FOCUS brand thermal paper slitting machine is advanced equipment designed for slitting thermal paper, NCR paper, fax paper, cash register paper, ATM paper, self-adhesive trademarks, and other papers less than 250gsm. Capable of slitting one, two, or three layers of small paper rolls, primarily thermal paper rolls and NCR paper rolls.
This machine features simple operation and high automation. All parameters are pre-adjusted to optimal conditions before factory delivery. Operators simply input speed and tension data, and the entire machine operates with automatic simultaneous control. This advanced technology has gained worldwide popularity.
Technical Parameters
| Items | Parameters |
|---|---|
| Max. Parent Web Width | 900mm |
| Max. Parent Web Diameter | 1000mm |
| Max. Rewinding Diameter | 200mm |
| Frequency Inverter Motor | 2.2Kw |
| Thickness Range | 40-400gsm |
| Max. Machine Speed | 200m/min |
| Overall Dimension | 1600*1700*1600mm (1 Ply) |
| Weight | 1900kg |
| Voltage | 3 Phase 220V 60HZ or 380V 50HZ |
Qingdao FOCUS MACHINERY Co., Ltd.
Qingdao FOCUS MACHINERY Co., Ltd., founded in the 1990s, specializes in manufacturing paper machines and providing complete production lines for the paper industry. Leveraging leading technologies, extensive experience, and technical know-how, we meet diverse requirements and deliver turnkey projects.
As a subsidiary of Goodwill Group Limited (founded in the UK), we have established over 30 successful production lines and exported numerous machines to South America, Asia, Africa, Europe, and beyond. Our reputation has attracted customers worldwide who visit to verify our capacity and observe our machines in operation, along with the quality of paper they produce. Fifteen years ago, we established our own paper factory using machines and production lines we designed and manufactured.
